Earth Observation Objects Tutorial

About this tutorial

What will you learn ?

With this tutorial, you'll be able to:

Obtain a sample of objects detected in Earth Observation (EO) images.
Index the data for these objects in Elasticsearch.
Reference the indexed object data within ARLAS.
Create an ARLAS dashboard using a configuration file.
Configure the dashboard to visualize the images associated with the detected objects

What will you need ?

Follow the Get Started guide to configure your environment.

What will you get ?

An ARLAS dashboard with map layers and widgets to explore a sample of the EO Objects data.

Exploration app created in this tutorial

The tutorial data

xView Dataset

The Earth Observation objects are a sample of the xView dataset. xView is one of the largest publicly available datasets of overhead imagery. It contains images from complex scenes around the world, annotated using bounding boxes.

This dataset is widely used to train and evaluate machine learning algorithms for object detection in Earth Observation (EO) images.

We processed this data to create a NDJSON file where each row is a detected object and its metadata:

bounds_imcoords	center_geom	dataset_source	edited_by	feature_id	geometry	image_geom	image_id	image_number	ingest_time	object_id	original_index	timestamp	type_id
859,1521,940,1617	POINT (23.56328 3...	xView1	wwsofiaramirez	435590	POLYGON ((23.5631...	POLYGON ((23.5724...	2547.tif	2547	2017-07-27 12:46:...	2547.tif_obj.45535	45535	1501159561	Barge
4045,1786,4079,1810	POINT (23.572215 ...	xView1	wwedithcolon	352703	POLYGON ((23.5721...	POLYGON ((23.5724...	2547.tif	2547	2017-07-21 19:36:...	2547.tif_obj.45536	45536	1500665778	Building

The original images are geolocated TIFF files. We extracted the objects' images based on their bounding boxes (BBOX) and stored them as JPG files.

All these images are stored in a public bucket to make them accessible in ARLAS. In this tutorial, we will use these images to display the objects alongside their source Earth Observation (EO) images.

For this tutorial, we extracted a sample of 14,842 objects from 22 EO images covering parts of Athens, Greece.

Download the data

To download the EO objects data, run at project root:

python tutorials/eo_objects/download_eo_objects_data.py

Success

The downloaded NDJSON file is stored at: tutorials/eo_objects/data/eo_objects/xView/eo_objects_athens.json

Ingest data in ARLAS

Index AIS data in Elasticsearch

Create an empty eo_objects index in Elasticsearch with the mapping inferred by arlas_cli

arlas_cli indices \
    --config local \
    mapping tutorials/eo_objects/data/eo_objects/xView/eo_objects_athens.json/part-00000-*.json   \
    --no-fulltext original_index \
    --no-fulltext bounds_imcoords \
    --no-fulltext feature_id \
    --no-fulltext dataset_source \
    --no-fulltext object_id \
    --no-fulltext image_number \
    --no-fulltext ingest_time \
    --nb-lines 100 \
    --push-on eo_objects

Check that the index has been created:

> arlas_cli indices --config local list
+------------+--------+-------+------+
| name       | status | count | size |
+------------+--------+-------+------+
| eo_objects | open   | 0     | 225b |
+------------+--------+-------+------+

Success

The eo_objects index exists. It does not contain any data yet.

You can check that the data model is correct:

> arlas_cli indices --config local describe eo_objects
+-----------------------+-----------+
| field name            | type      |
+-----------------------+-----------+
| center_geom           | geo_point |
| geometry              | geo_shape |
| image_geom            | geo_shape |
| image_id              | keyword   |
...
| object_id             | keyword   |
| timestamp             | date      |
| type_id               | keyword   |
+-----------------------+-----------+

Index the eo_objects.json data in Elasticsearch with arlas_cli

arlas_cli indices \
    --config local  \
    data eo_objects \
    tutorials/eo_objects/data/eo_objects/xView/eo_objects_athens.json/*.json

Check the state of the index:

> arlas_cli indices --config local list
+------------+--------+-------+------+
| name       | status | count | size |
+------------+--------+-------+------+
| eo_objects | open   | 14842 | 6mb  |
+------------+--------+-------+------+

Success

The 14842 EO objects are available in the eo_objects

Delete index

If you want to delete the index, run:

arlas_cli indices \
    --config local \
    delete eo_objects

Warning

Before reindexing data, don't forget to recreate an empty index with mapping

Create collection

ARLAS-server interfaces with the data indexed in Elasticsearch via a collection reference.

The collection references an identifier, a timestamp, and geographical fields which allows ARLAS-server to perform a spatial-temporal data analysis, as well as general information about the collection's ownership, visibility and display names.

See ARLAS Collection for more details.

Create the tuto_eo_objects collection in ARLAS

arlas_cli collections \
    --config local \
    create tuto_eo_objects \
    --index eo_objects \
    --display-name "EO Objects" \
    --centroid-path center_geom \
    --geometry-path geometry \
    --date-path timestamp \
    --id-path object_id \
    --owner tutorial

Check that the collection is created:

> arlas_cli collections --config local list
+-----------------+------------+
| name            | index      |
+-----------------+------------+
| tuto_eo_objects | eo_objects |
+-----------------+------------+

Success

The tuto_eo_objects collection is created and targets the eo_objects index.

Create a dashboard

Note

The dashboard EO Objects is available on cloud.arlas.io to explore the full dataset

Create an ARLAS dashboard from a configuration file

Depending on your deployment, change the ARLAS server URL in the dashboard configuration.

Run at the project root:

LocalARLAS Cloud

export ARLAS_SERVER_URL=http://localhost/arlas

envsubst '$ARLAS_SERVER_URL' < tutorials/eo_objects/arlas/template.config.dashboard.json > tutorials/eo_objects/arlas/config.dashboard.json

Then create the ARLAS dashboard from the configuration file:

arlas_cli persist \
    --config local \
    add tutorials/eo_objects/arlas/config.dashboard.json config.json --name "EO Objects"

export ARLAS_SERVER_URL=https://cloud.arlas.io/arlas/server

envsubst '$ARLAS_SERVER_URL' < tutorials/eo_objects/data/arlas/template.config.dashboard.json > tutorials/eo_objects/data/arlas/config.dashboard.json

Then create the ARLAS dashboard from the configuration file:

arlas_cli persist \
    add tutorials/eo_objects/data/arlas/config.dashboard.json config.json --name "EO Objects"

ARLAS with the created "EO Objects" dashboard

Success

The EO Objects Dashboard is accessible in ARLAS.

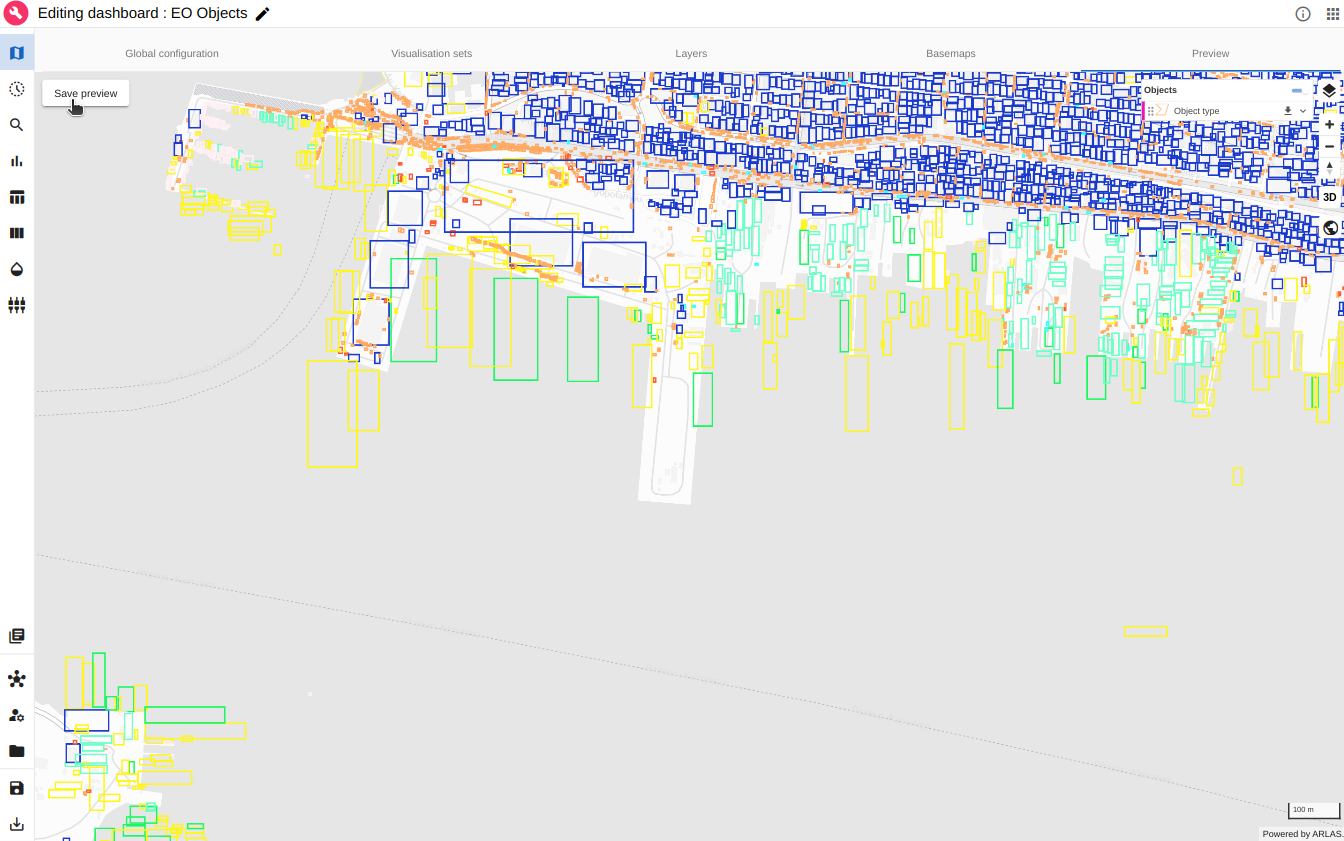

You can set a preview by editing the dashboard and choosing a view in the map Preview tab:

Set EO Objects dashboard preview

The created dashboard has now its preview in ARLAS Hub:

ARLAS with the created "EO Objects" dashboard and its preview

Data table

The Data Table allows you to display data values as a table on the right side of the application. Each row corresponds to an indexed element, such as an EO object detected in an image.

There are strong interactions between the data table and the visible map layers. For instance, the displayed elements in the table correspond to objects currently visible on the map. It is also possible to configure layers that only contain the table's data.

Creating a data table

To explore an item's information and details, you can create a table.

Let’s create a Data Table called Objects and choose the data fields to display.

Configure the main table

In the Data tab, select the main fields that identify the objects:

object_id: The object identifier
ingest_time: The time the object was ingested
type_id: The detected type of the object

Set the objects Data Table main information

You can also color the Type column for better visualization.

Now, the Data Table can be opened on the right side of the dashboard.

Visualize Data Table in the ARLAS Dashboard

Note

Hovering an element in the data table highlights its geometry on the map (here, the pink bbox).

This interactive feature links the information in the table with the element's location on the map.

Configure the table details

While the main data fields are set in the Data Table, you can add more fields in the table's Details section.

We can organize the data fields into sections. For example, we can add information related to the object itself and its source image.

Set the objects Data Table main information

Set the objects Data Table details

In the ARLAS Dashboard, these details can be expanded or collapsed as needed.

Visualize the objects Data Table details

Tip

Use the Zoom to button to zoom in on an object's location.

Configuration of the image grid

The objects can include metadata and associated images, which can also be displayed in ARLAS Dashboards.

The data table can be configured to access images stored on a server. For instance, we stored some EO objects images as .jpg in a public object store:

These images can be accessible in ARLAS dashboards using the following url:

https://storage.googleapis.com/gisaia-public/demo/eo_objects/xView

Object thumbnails

Let's first configure the object thumbnails. It is a simple light preview of the object that is stored in xView/objects_thumbnails/jpg.

It contains the images named using the object identifier: {object_id}.jpg

Example:


Let's define the url pattern that will access the associated image for each object based on its object_id value:

https://storage.googleapis.com/gisaia-public/demo/eo_objects/xView/objects_thumbnail/jpg/{object_id}.jpg

In the Data Table Render tab, we define this url as the Thumbnail url.

Note

We can add a Color field and a Title field that will be used to display the image.

Let's choose the type_id field corresponding to the object's detected type.

Visualize the objects thumbnails

Success

Now, object images are visible in the dashboard on the right side.

You can expand the full grid of thumbnails:

Visualize the objects thumbnails full grid

You can scroll within the grid to see more object images.

EO image Quicklook

Thumbnails are usually small, lightweight images. For higher quality, larger images, we configure Quicklooks.

We can define multiple Quick Looks for each object. For example, let's define two Quicklooks:

The cropped object: https://storage.googleapis.com/gisaia-public/demo/eo_objects/xView/objects_thumbnail/jpg/{object_id}.jpg
Its source image: https://storage.googleapis.com/gisaia-public/demo/eo_objects/xView/train_images_jpg/{image_number}.jpg

Note

In this example, the same URL is used for both thumbnails and cropped objects, but higher-resolution images could also be used.

The cropped object uses the object_id field in its URL, while the source image uses the image_number field.

Configure the Objects and Source image Quicklooks

You can then visualize both images for each object by clicking on its thumbnail.

Visualise Object Quicklooks

You can switch between Quicklooks.

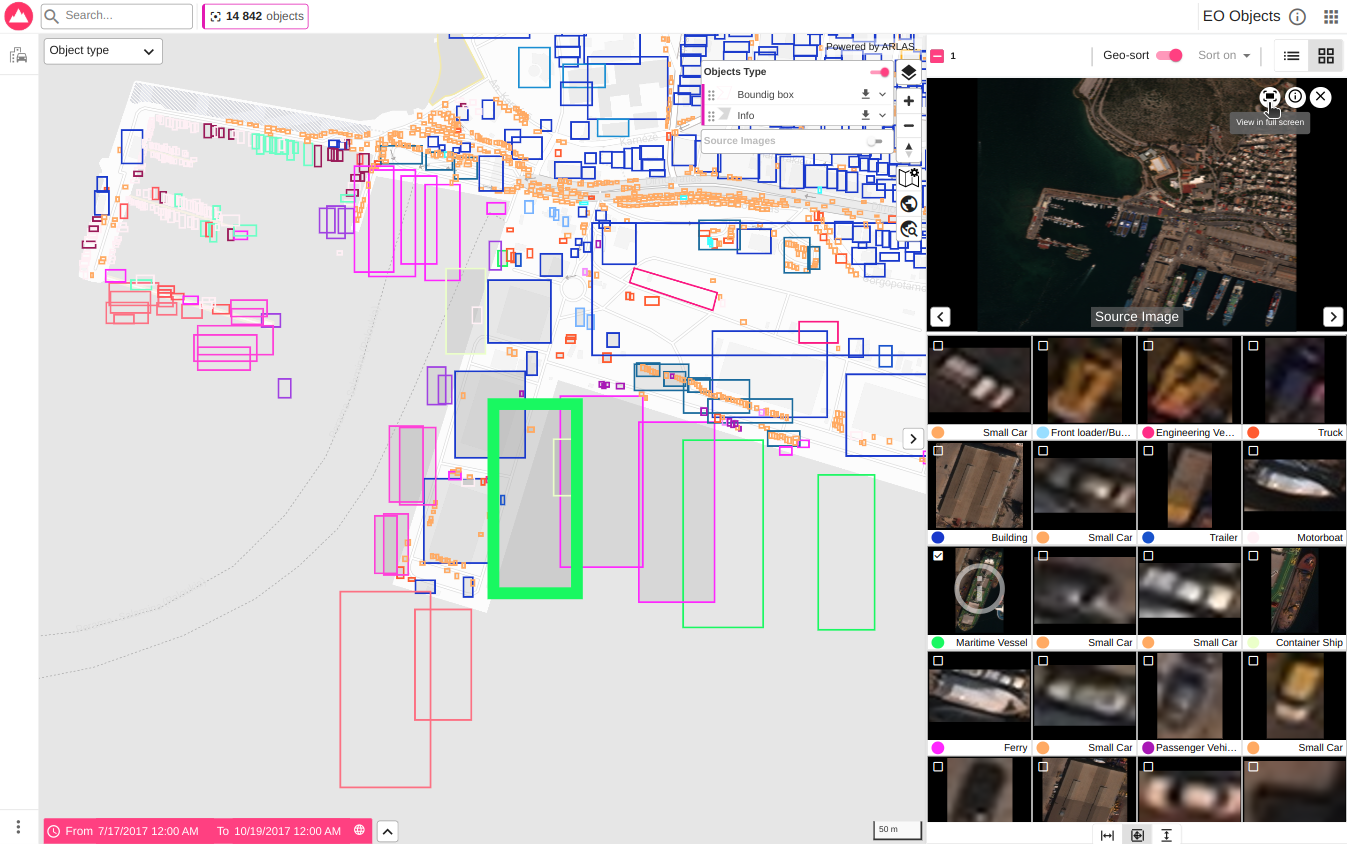

Visualise Source Image Quicklooks

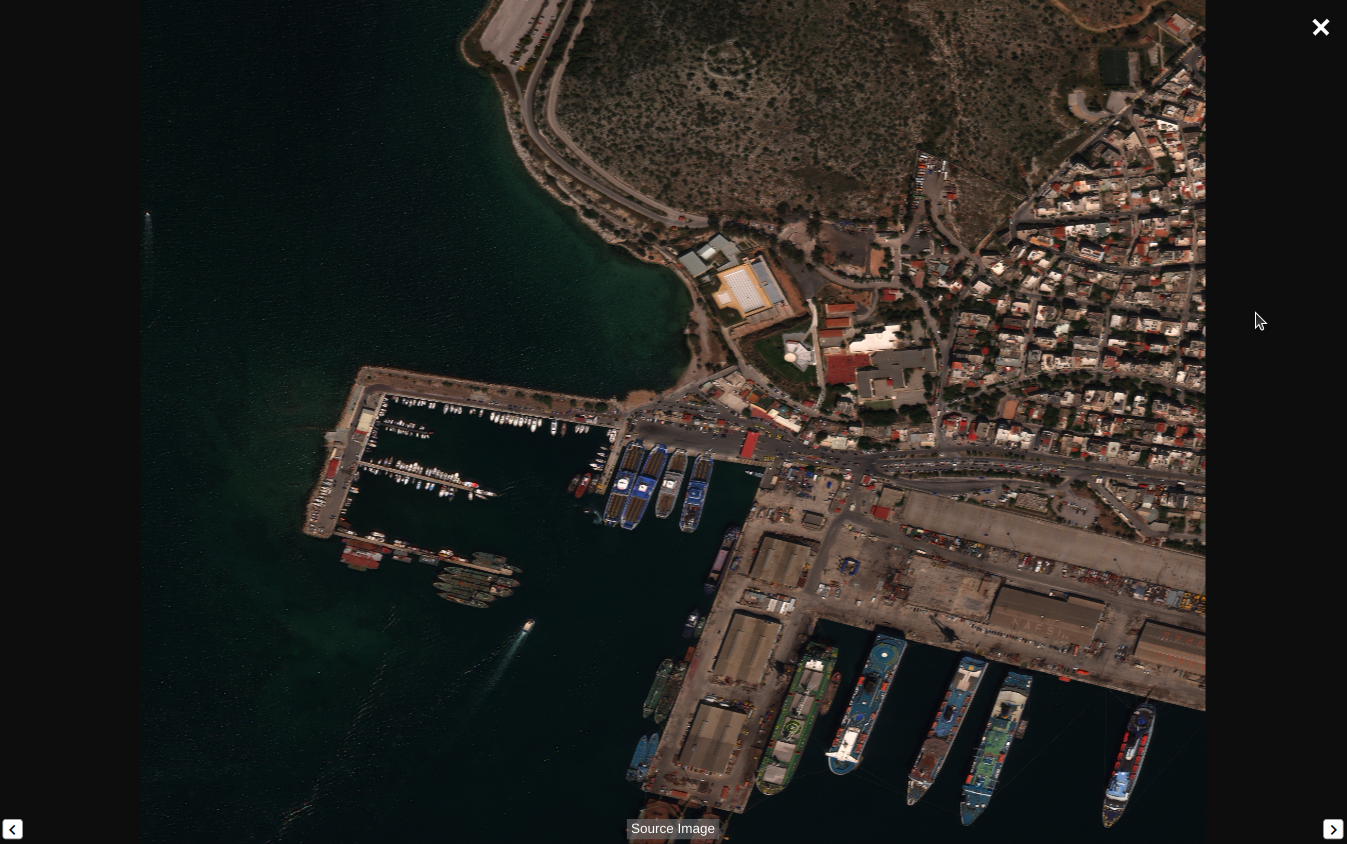

You can also open the Quicklook in full screen:

Visualise Source Image Quicklooks

Explore the dashboard in ARLAS-Wui

After saving your ARLAS Dashboard, you can explore all the tutorial detected objects:

Explore EO Objects in ARLAS Dashboard

This simple dashboard allows you to start exploring EO object data!

Check out a more EO objects data and other datasets in our demo space!
